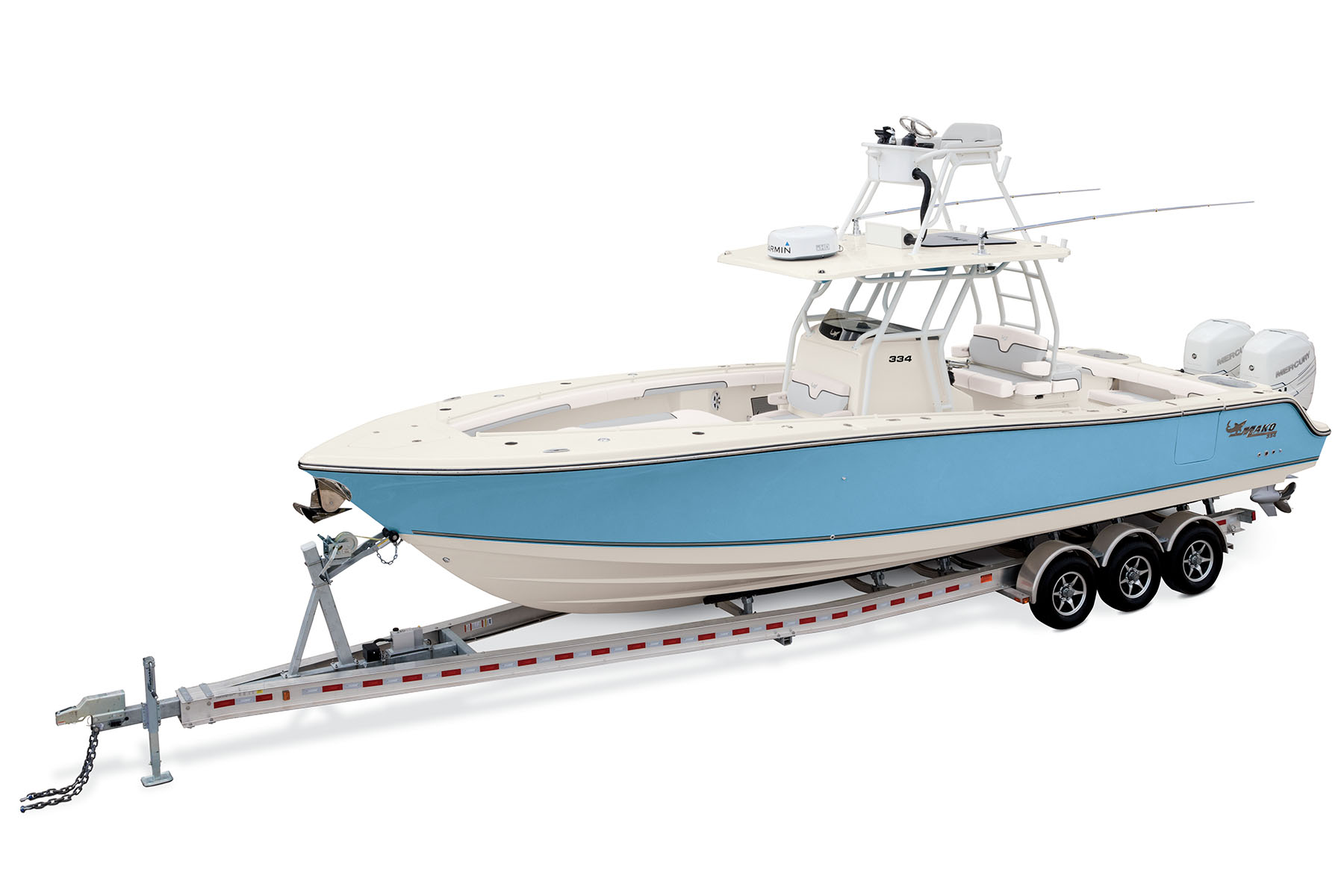

334 CC Sportfish Edition

2020

334 CC Sportfish Edition

w/ Twin Mercury® 350 XXL Verado® Warm Fusion White w/Joystick Piloting Sportfish Edition
Price Excludes Optional Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
Base Price
$314900
USD

Overview

The MAKO® 334 CC ushers in an era of empowered performance, elevated style, and enhanced fit and finish. It’s built to feed your passion for sportfishing in safety and style with an alliance of custom creature comforts and state-of-the-art technology.

This advanced, spacious offshore craft offers unsurpassed flexibility in the interior plus the overbuilt durability that has made MAKO legendary for half a century. It’s built on a hand-laid, 24°-deadrise Deep V hull with a unique notched transom for top performance and improved efficiency. Powered with up to 1,200 horsepower, the 334 slices through the chop, rides dry and smooth, and has the range to handle any offshore quest.

Sportfish Edition: Fully rigged for the most arduous offshore challenges, the MAKO 334 CC Sportfish Edition was developed with the cooperation of some of Florida’s leading guides, including George Poveromo. It features a huge open bow, with a 292-qt. coffin box that lifts on hydraulics to reveal storage beneath. The hardtop is crowned with an upper helm station with Mercury® VesselView®, and it’s flanked with premium outriggers.


Specifications

Length 10.16 m 33' 4''
Beam 3 m 9' 10''
Bottom Width 2.58 m 8' 5.5''
Max. Recommended HP 1200 HP
Fuel Capacity 1158.21 L 306 gal.
Interior Depth 86.36 cm 34''
Transom Height At Center Line 76.2 cm 30''
Deadrise 24 degrees
Draft 53.34 cm 21''
Dry Weight 4946.42 kg 10905 lbs.
Average Hull Weight 4082.33 kg 9000 lbs.
Average Package Weight 5422.7 kg 11955 lbs.
Package Height w/T-top or Hardtop 3.86 m 12' 8''
Storage Length 13.13 m 43' 1''

Motor Options

AVAILABLE MOTOR ESTIMATED SPEEDS
Sportfish Edition
Twin Mercury® 350 XXL Verado® Warm Fusion White w/Joystick Piloting -
$314900

USD
Select Dealer
Twin Mercury® 400 XXL Verado® Warm Fusion White w/Joystick Piloting -
$321380

USD
Select Dealer
Triple Mercury® 300 XXL Verado® w/Joystick Piloting -
$359900

USD
Select Dealer
Triple Mercury® 300 XXL Verado® Warm Fusion White w/Joystick Piloting -
$365120

USD
Select Dealer
Triple Mercury® 350 XXL Verado® w/Joystick Piloting -
$368005

USD
Select Dealer
Triple Mercury® 350 XXL Verado® Warm Fusion White w/Joystick Piloting -
$372500

USD
Select Dealer

Features

Sportfish Edition
  • Upper helm station w/anti-fatigue pad & Mercury® VesselView®.
  • 292-qt. (276.34 L) bow coffin box w/power piston-lift & 740-qt. (700.3 L) in-deck storage below.
  • Reel protector pad.
  • Dual premium stainless TACO® outriggers.
  • GEM® gunnel rod holder package w/9 additional rod holders.
  • 3-bank, 30-amp battery charger.
Certification & Safety
  • Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats
  • NMMA® yacht certified
  • Factory leak tested for hull, plumbing & fitting integrity
  • Horn

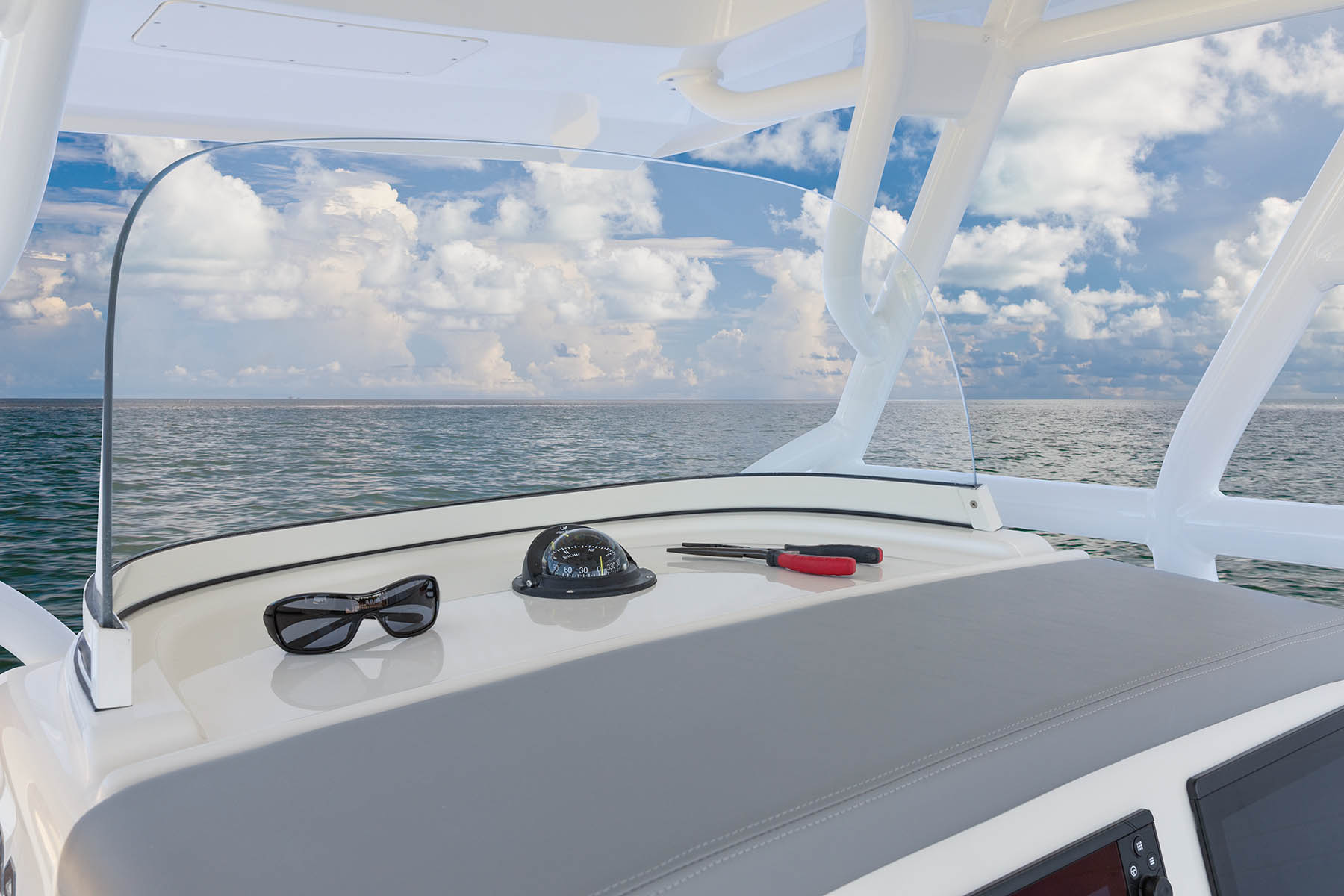

  • Flush-mounted Ritchie Navigation® Voyager compass
Console
  • 2 Garmin® 8612 XSV chartplotter/sonar combos w/4G radar, dual frequency sonar, sidescan transducer & VHF radio
  • CZone™ digital switching w/comprehensive electrical-monitoring system
  • Digital switching through multifunction displays
  • Stainless steel tilt steering wheel w/knob
  • Binnacle-mounted motor control(s)
  • Mercury® JPO (Joystick Piloting for Outboards) w/Skyhook® auto-positioning GPS
  • Mercury® VesselView®
  • Heavy-duty motorized mechanical switching system w/battery selectors & voltage sensing relays (VSR)
  • Recessed ignition switches
  • Illuminated electrical distribution panel w/digital volt meters
  • Illuminated panel & elevator switches
  • Mercury® diagnostic port
  • Easy access to helm electronics, instruments & switches
  • FUSION stereo w/4 marine grade, lighted speakers & 1,600W amplifier
  • Oversized forward-console seat w/81-qt. (76.65 L) insulated, drained cooler
  • Vinyl-covered console brow
  • Integrated full-width fiberglass footrest w/non-skid surface
  • Tempered safety glass windshield w/aluminum frame
  • Marine-grade tinned wiring w/submersible connectors
  • Extra-large electronics mounting surface
  • 2 console drink holders
  • 12V DC outlet & dual USB ports
Leaning Post
  • Fiberglass leaning post
  • Armrest
  • Backrest
  • Helm seat w/flip-up cushion
  • Storage below
  • Tackle storage
  • 2 large, hinged top storage drawers
  • 4 large, sliding storage drawers
  • Freshwater sink
  • Diffused LED courtesy light
  • Overhead LED lighting
  • 2 drink holders on leaning post
Top
  • Outrigger-ready fiberglass hardtop
  • .25" (6.35 mm) in-deck aluminum backing-plate reinforcement for frame
  • .25" (6.35 mm) in-hardtop aluminum backing-plate reinforcement
  • White powder-coated tubular frame
  • 2 electronics boxes w/lockable stainless steel latches
Head
  • Gelcoat-finished surface, sink, wiring access hatches, battery switch panel, battery access & more than 6' (1.83 m) head room
  • Freshwater toilet w/stainless steel sink
  • Main distribution panel inside head w/breakers to bypass digital functions
  • Portlight in head door
Interior
  • 22-lb. (10.0 kg) Delta® anchor thru-hull w/stainless steel breastplate & roller
  • Lewmar® below deck, vertical free-fall windlass w/rode stowage locker
  • 2-tone high-density marine-grade vinyl upholstery w/piping color matched to hull side, stain-resistant coating & composite substrates on seats
  • Seat bolsters
  • Oversized driver/passenger seat w/storage beneath, folding arm rests & flip-up bolster
  • Self-bailing cockpit w/gutters, oversized drains & transom valves

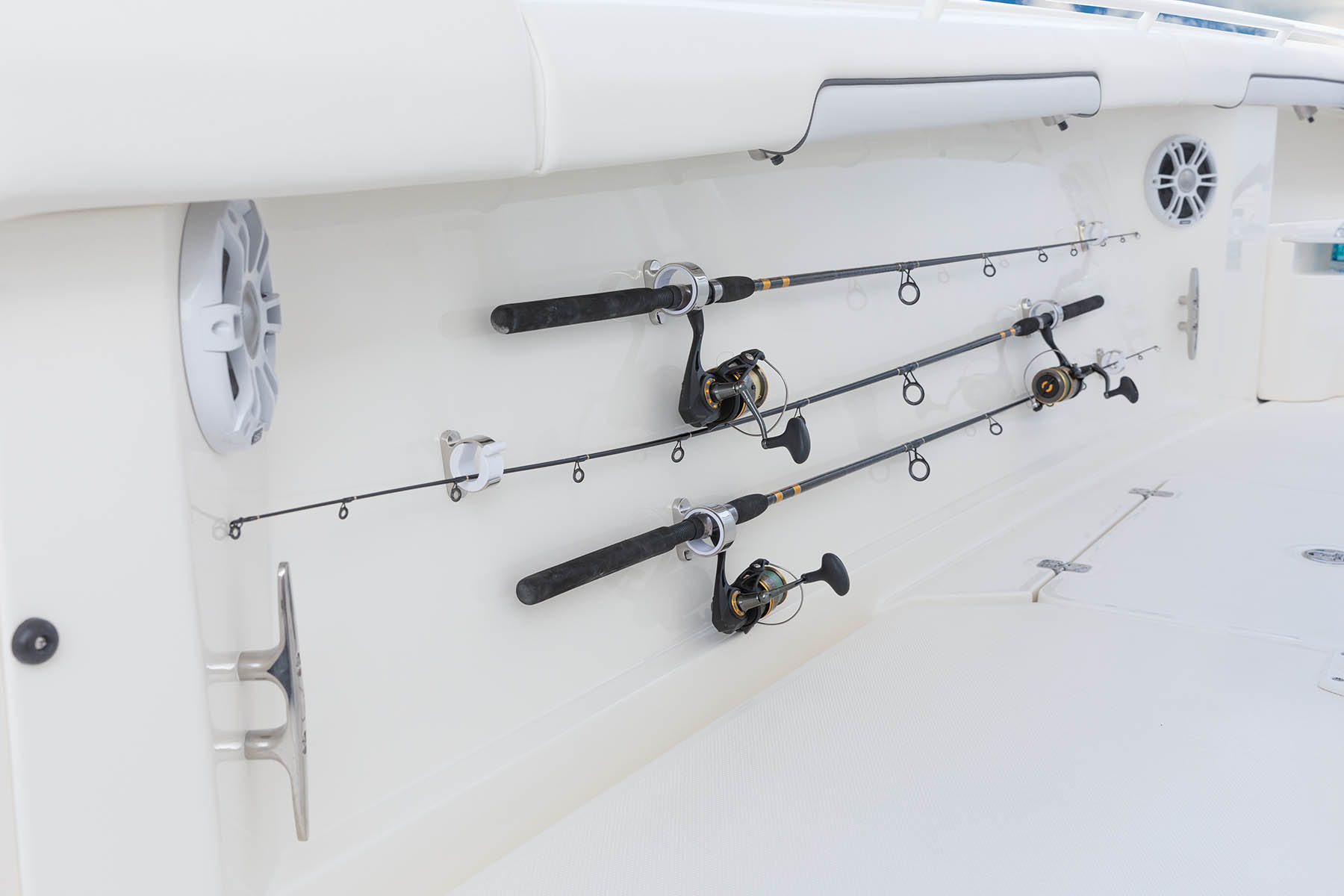

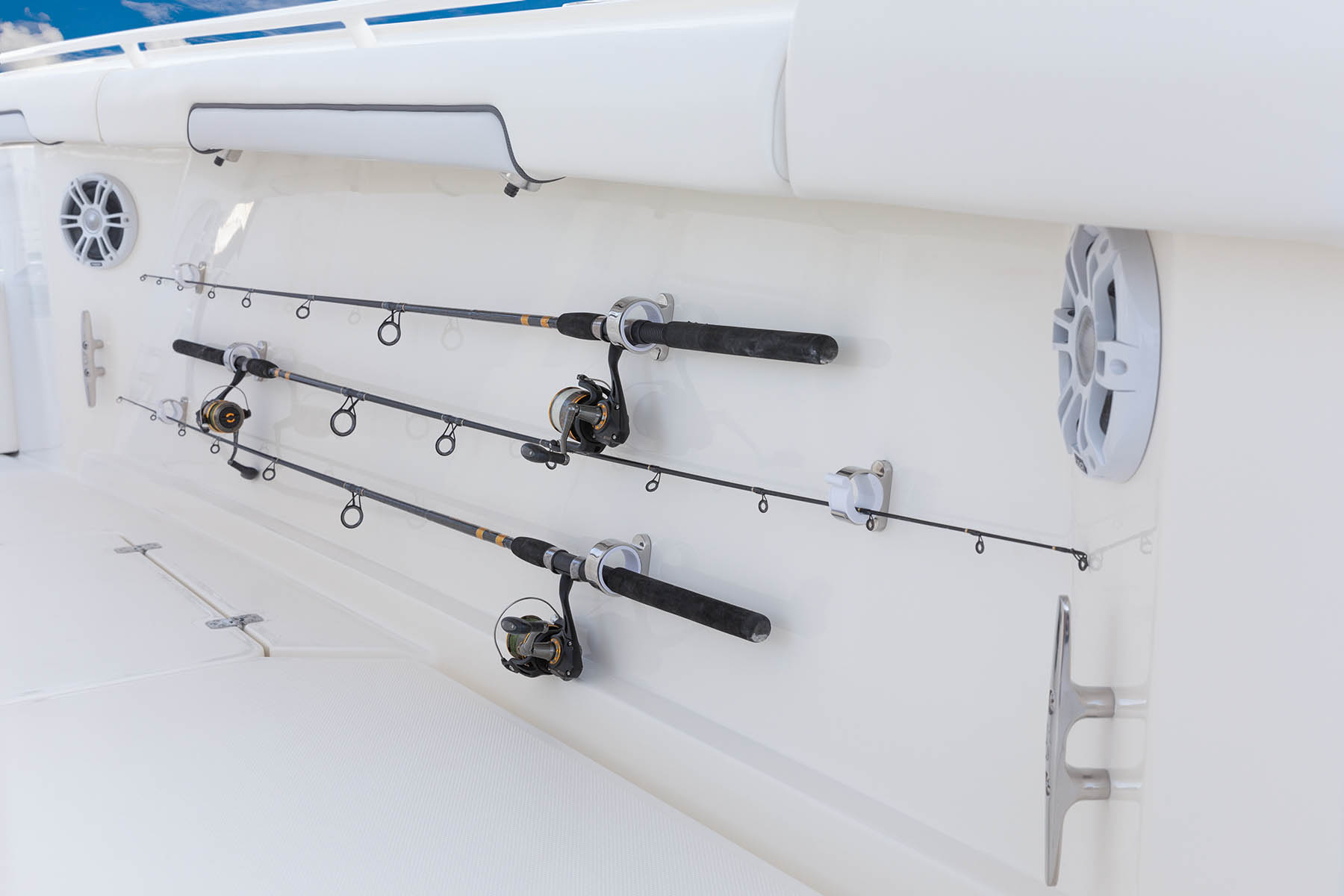

  • Port & starboard stainless steel, under-gunnel rod hangers for 6 rods up to 7' (2.13 m) long

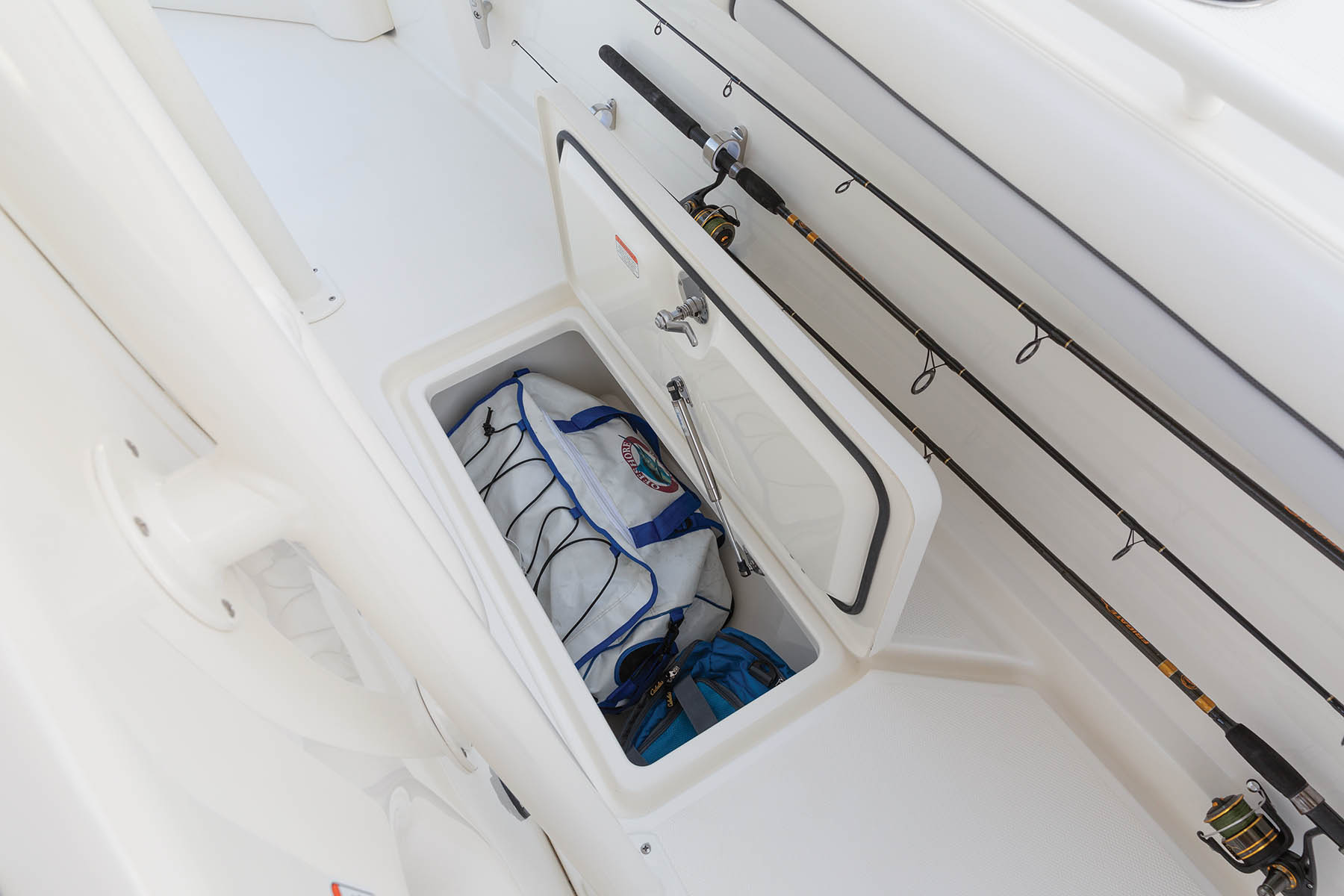

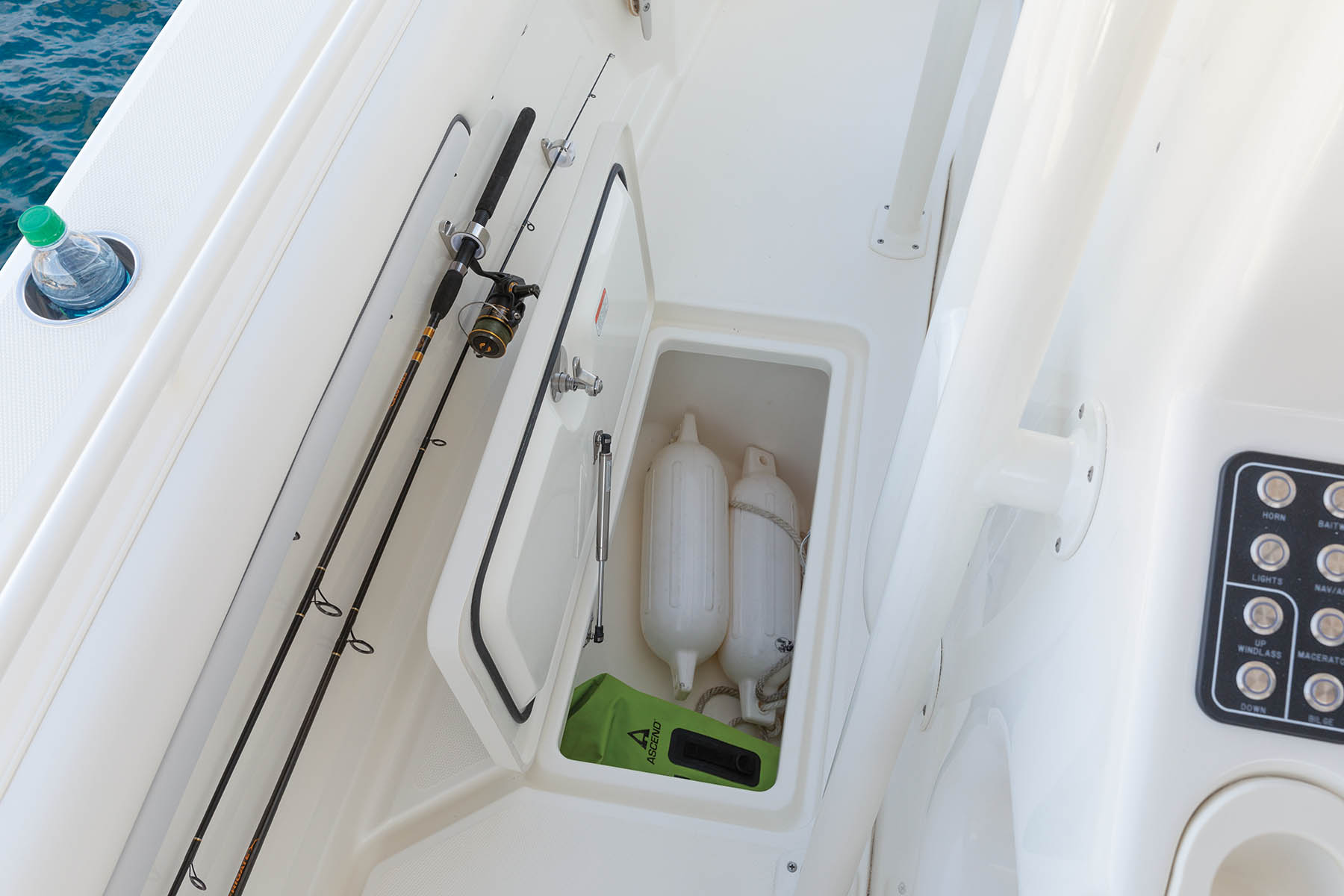

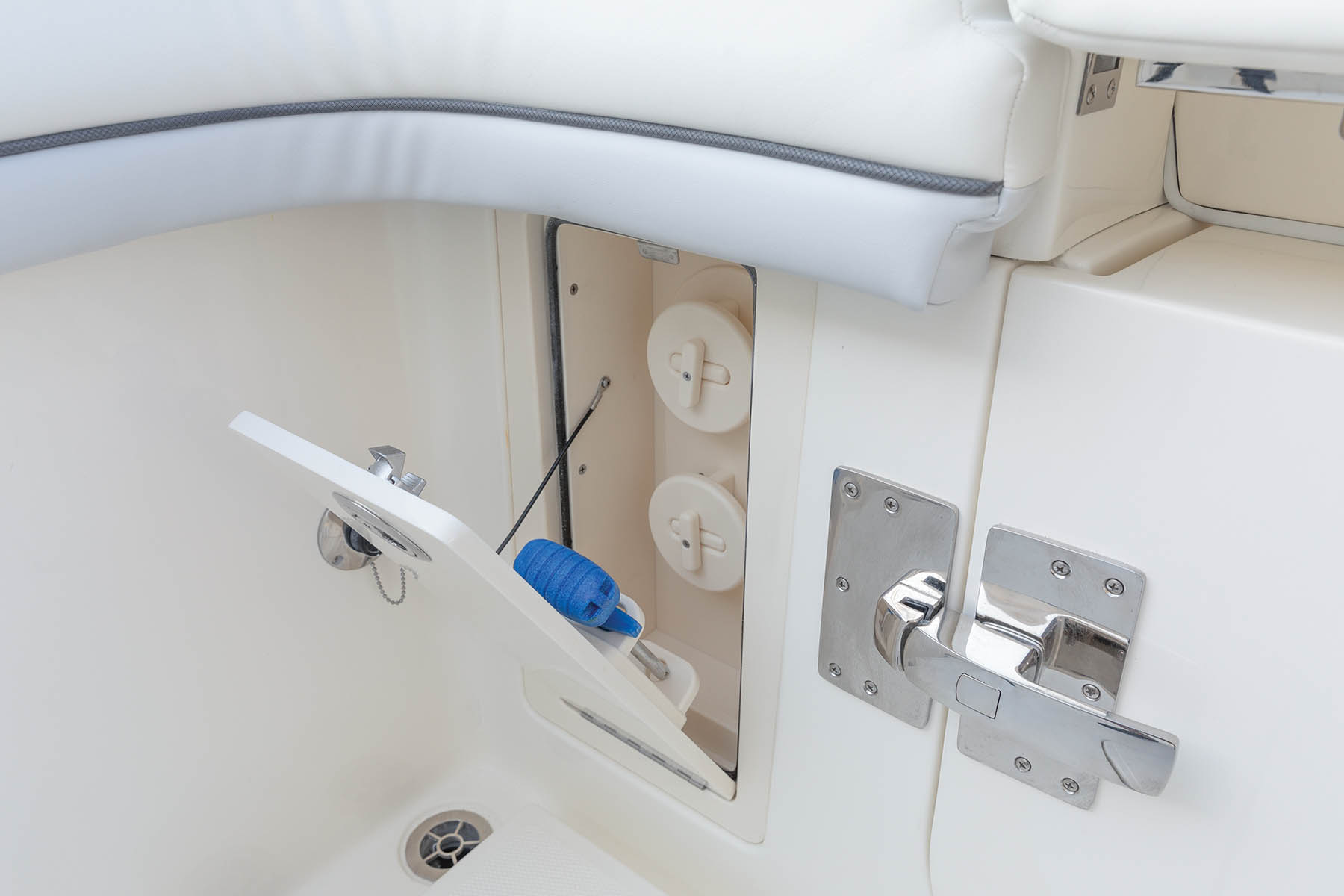

  • 2 port & 2 starboard midship tilt-out, lockable storage

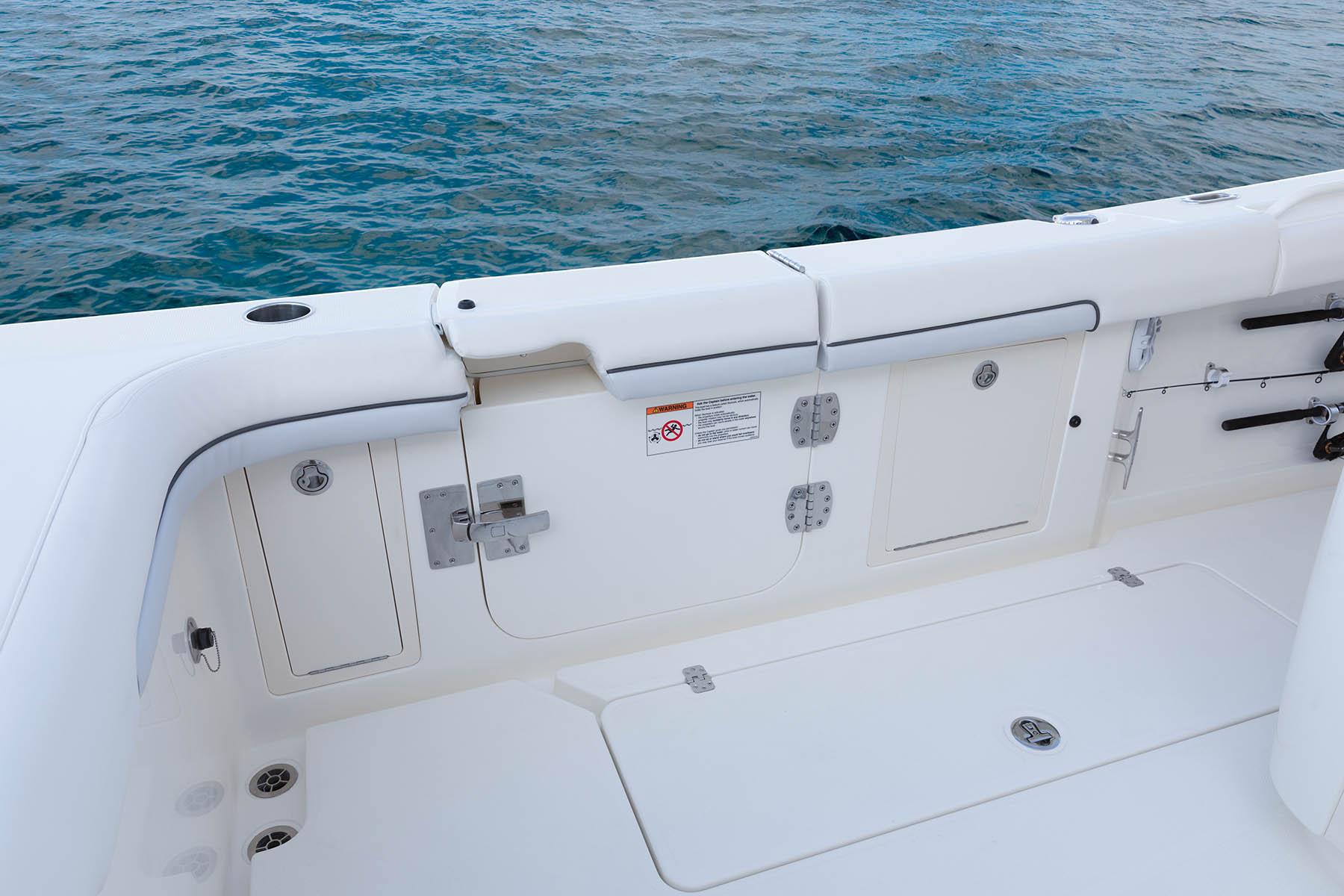

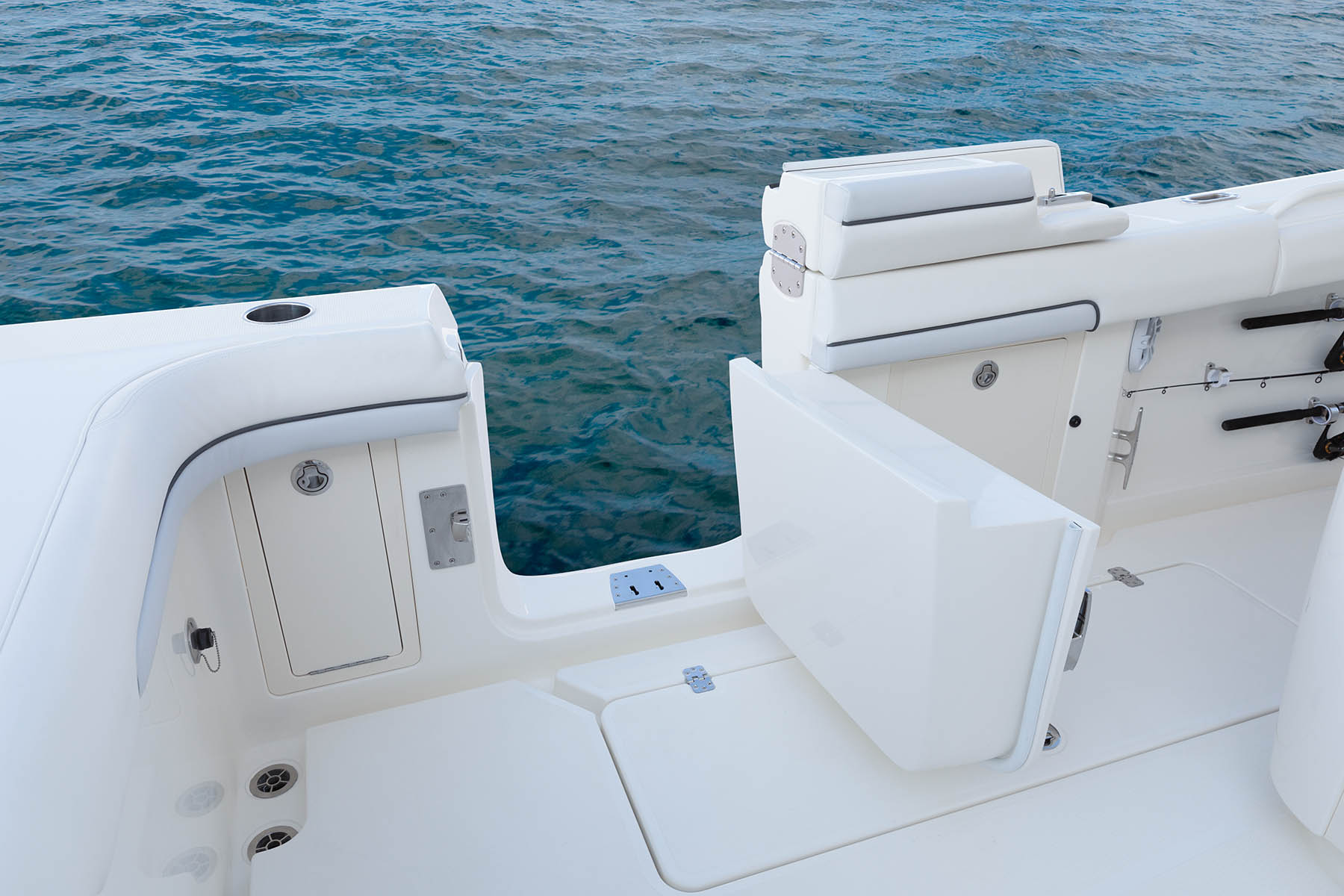

  • Tuna/dive/boarding door w/hinged gate
  • 290-qt. (274.44 L) insulated aft port & starboard in-deck fishboxes w/Gulper macerators & overboard discharge

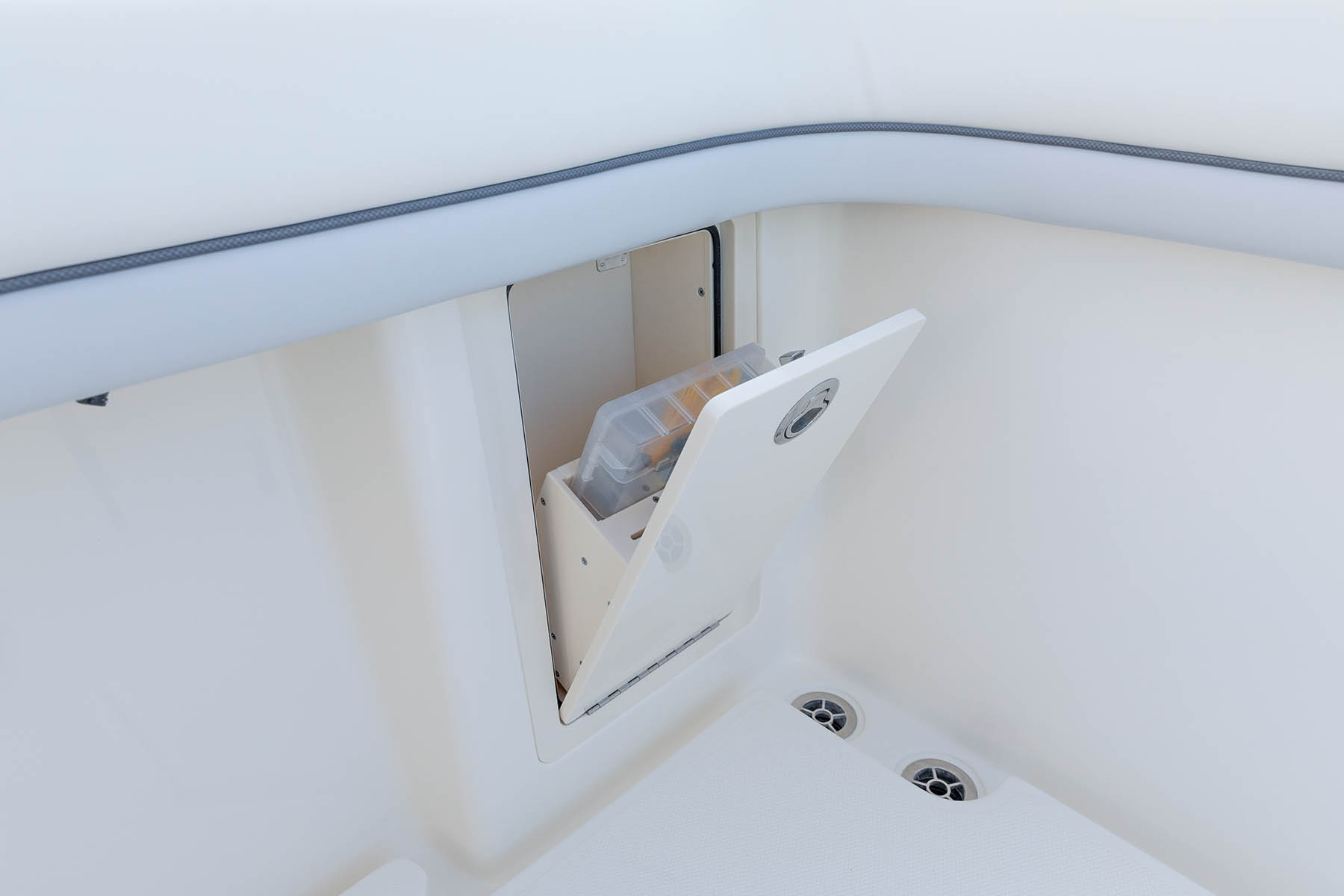

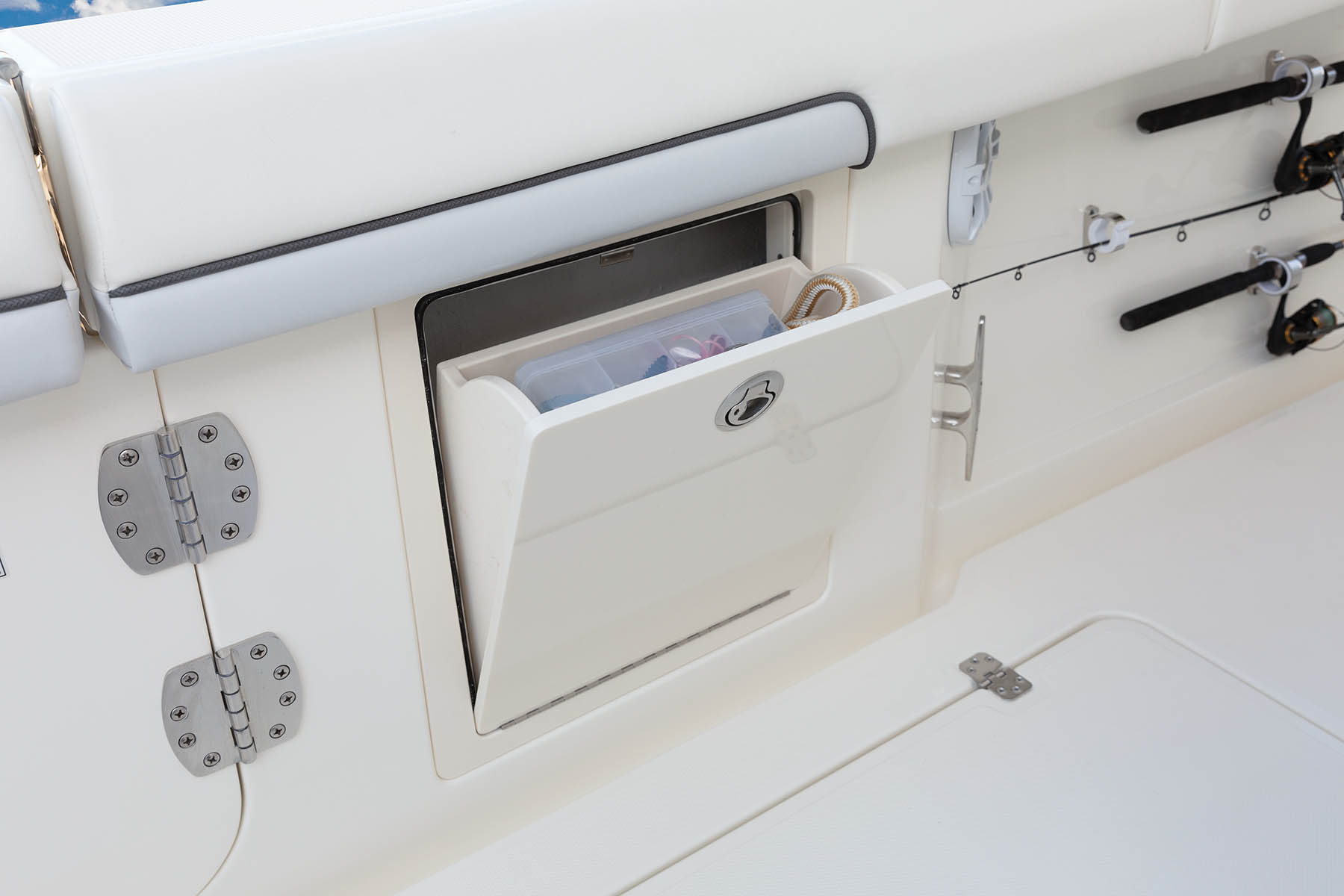

  • Aft port tilt-out, lockable storage w/Boga-Grip holder, needle nose plier holder, 12" (30.48 cm) filet knife holder & tackle tray holder

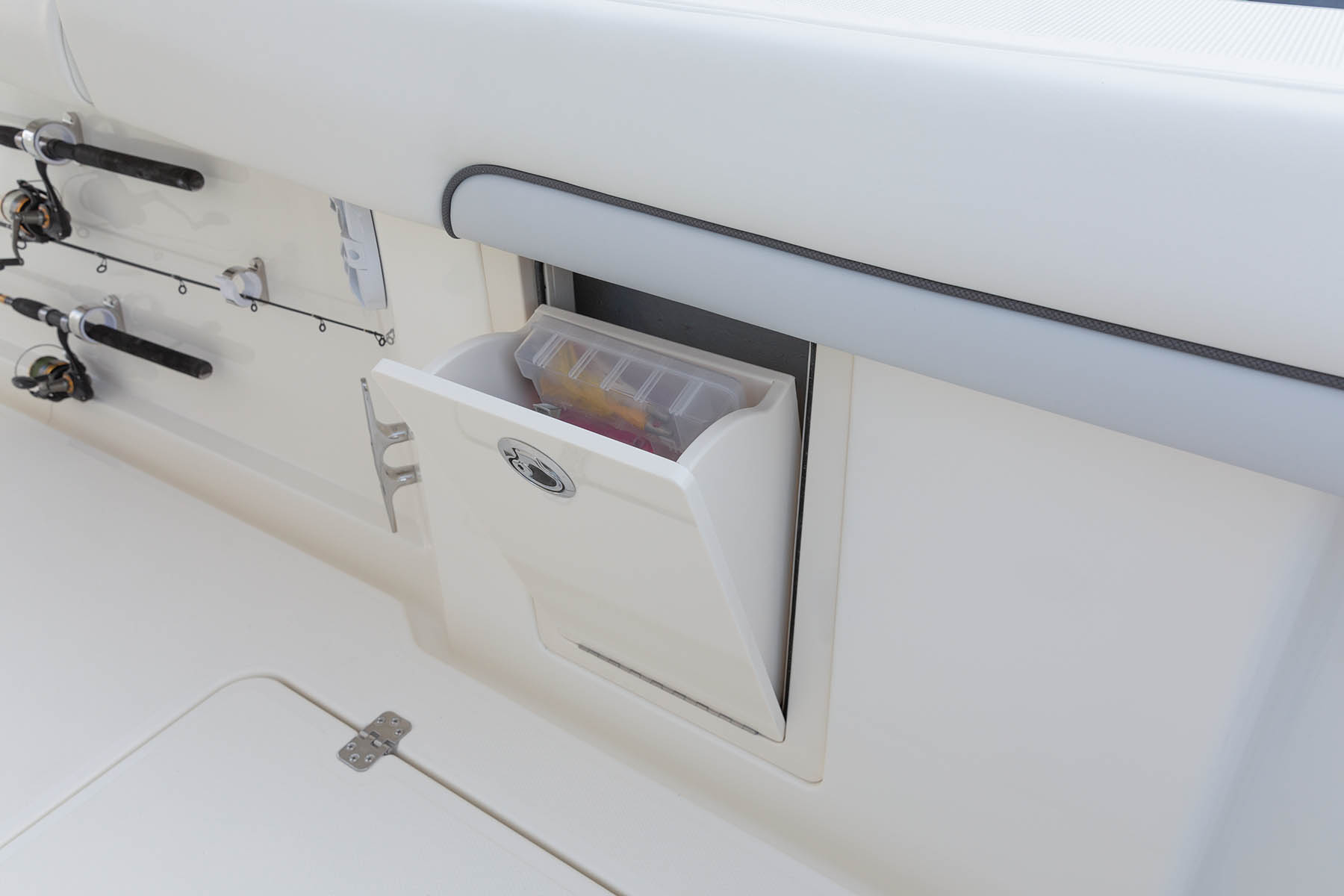

  • Aft starboard tilt-out, lockable storage w/leader holder & plier holder
  • Pocket mount aft bench seat

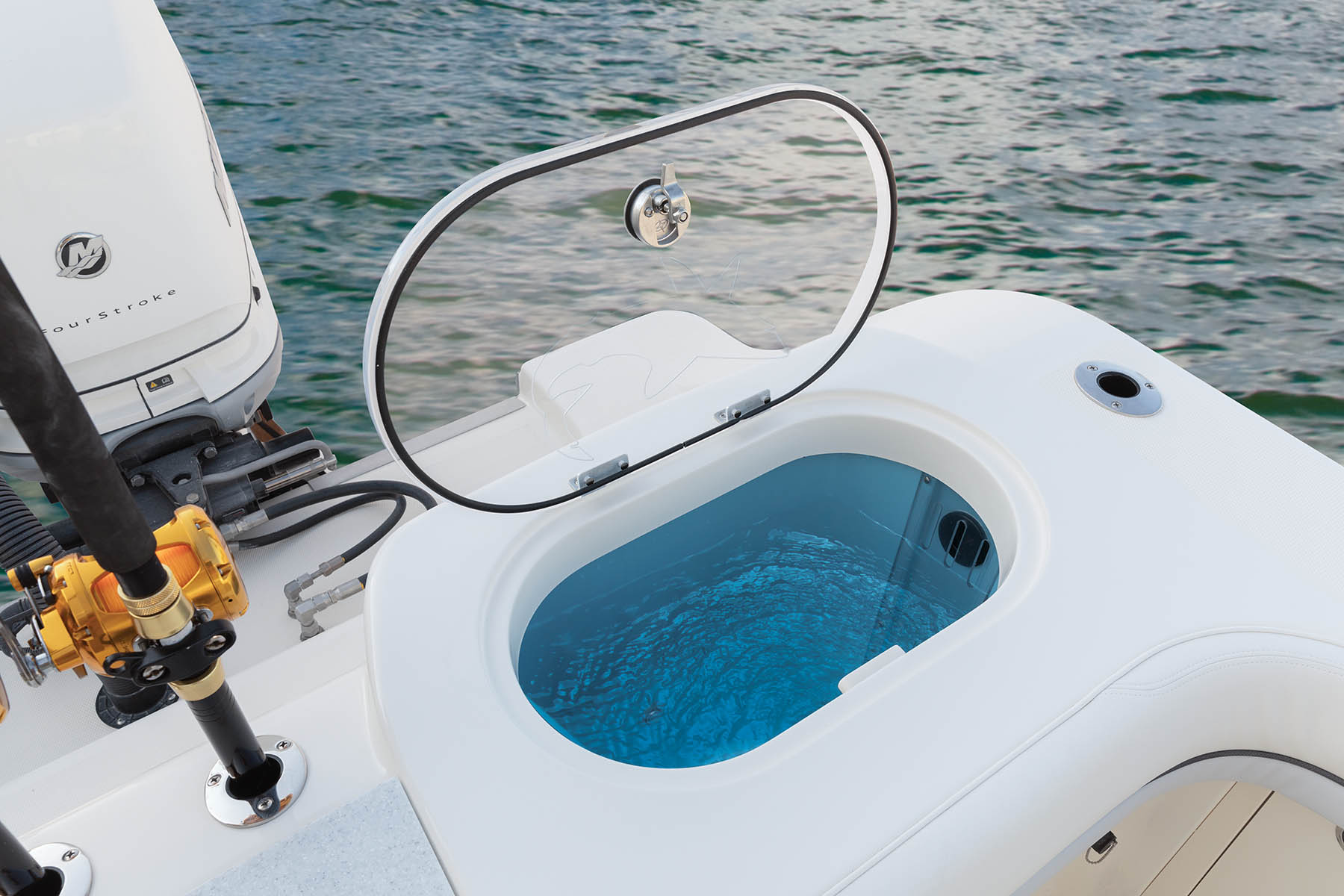

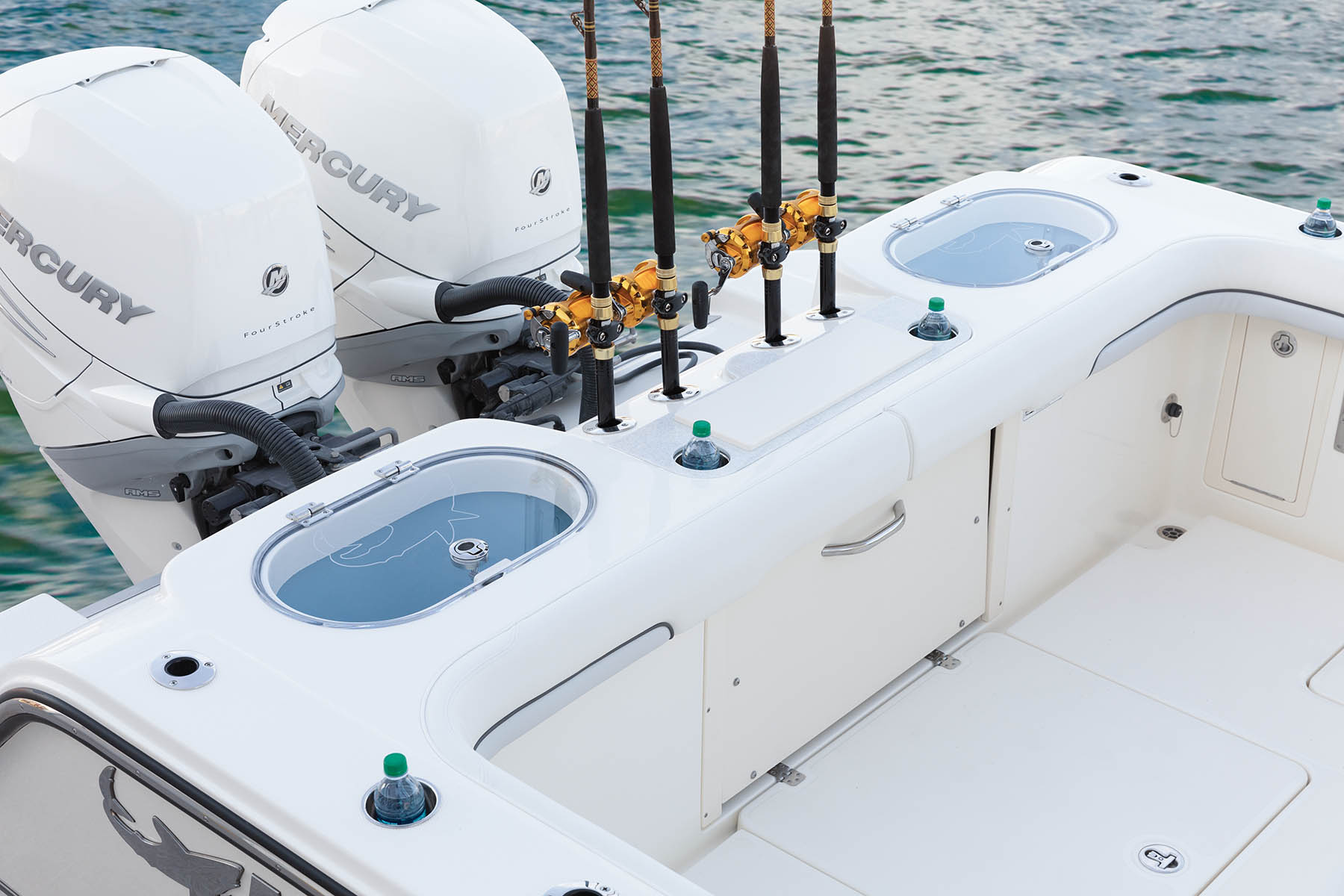

  • 2 aft 34-gal. (128.7 L) rounded livewells w/angled fills & friction-hinged acrylic lids

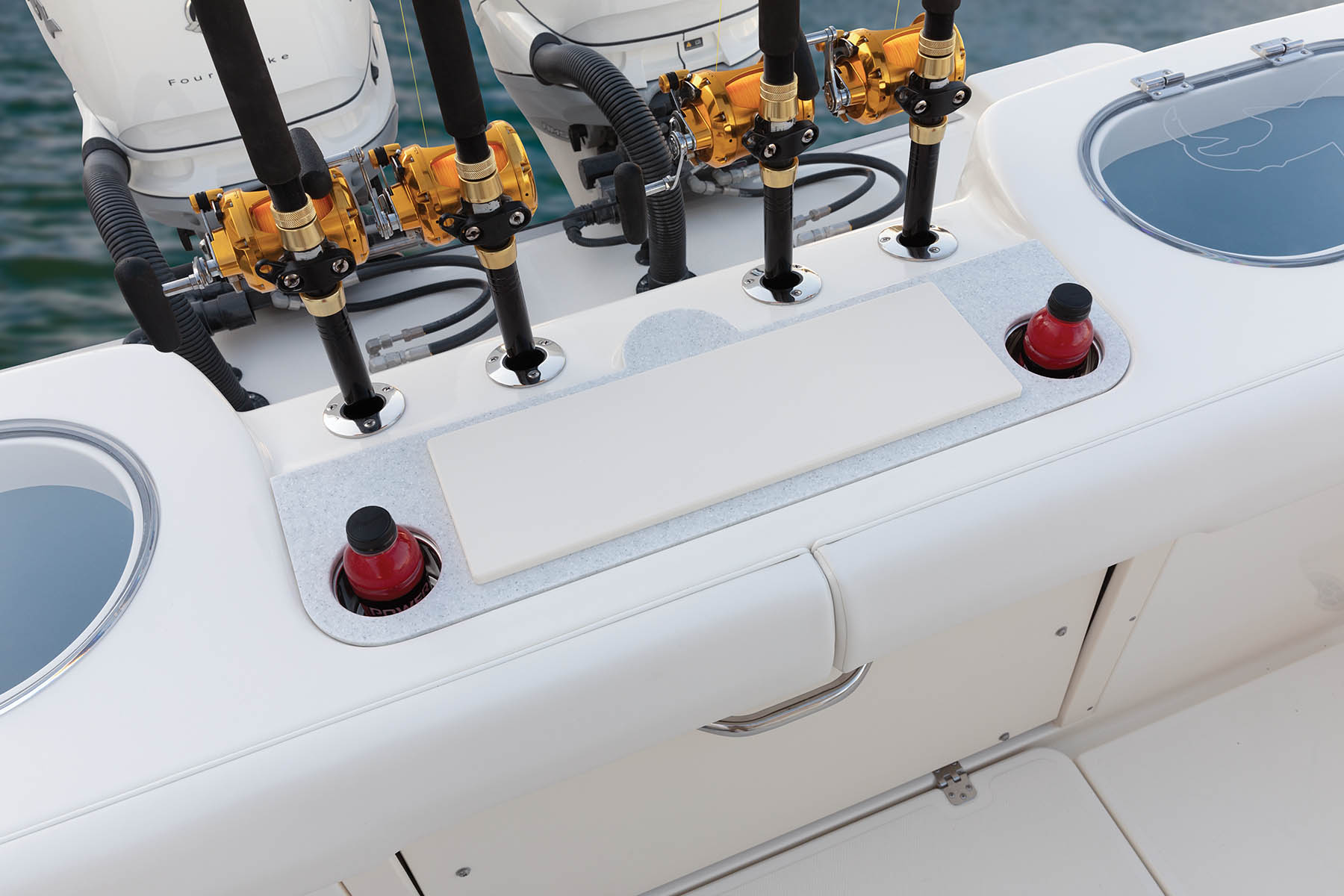

  • Aft center bait prep station w/2 stainless steel drink holders
  • Aft center cutting board
  • Molded non-skid surfaces throughout
  • Large lazarette/bilge access hatch

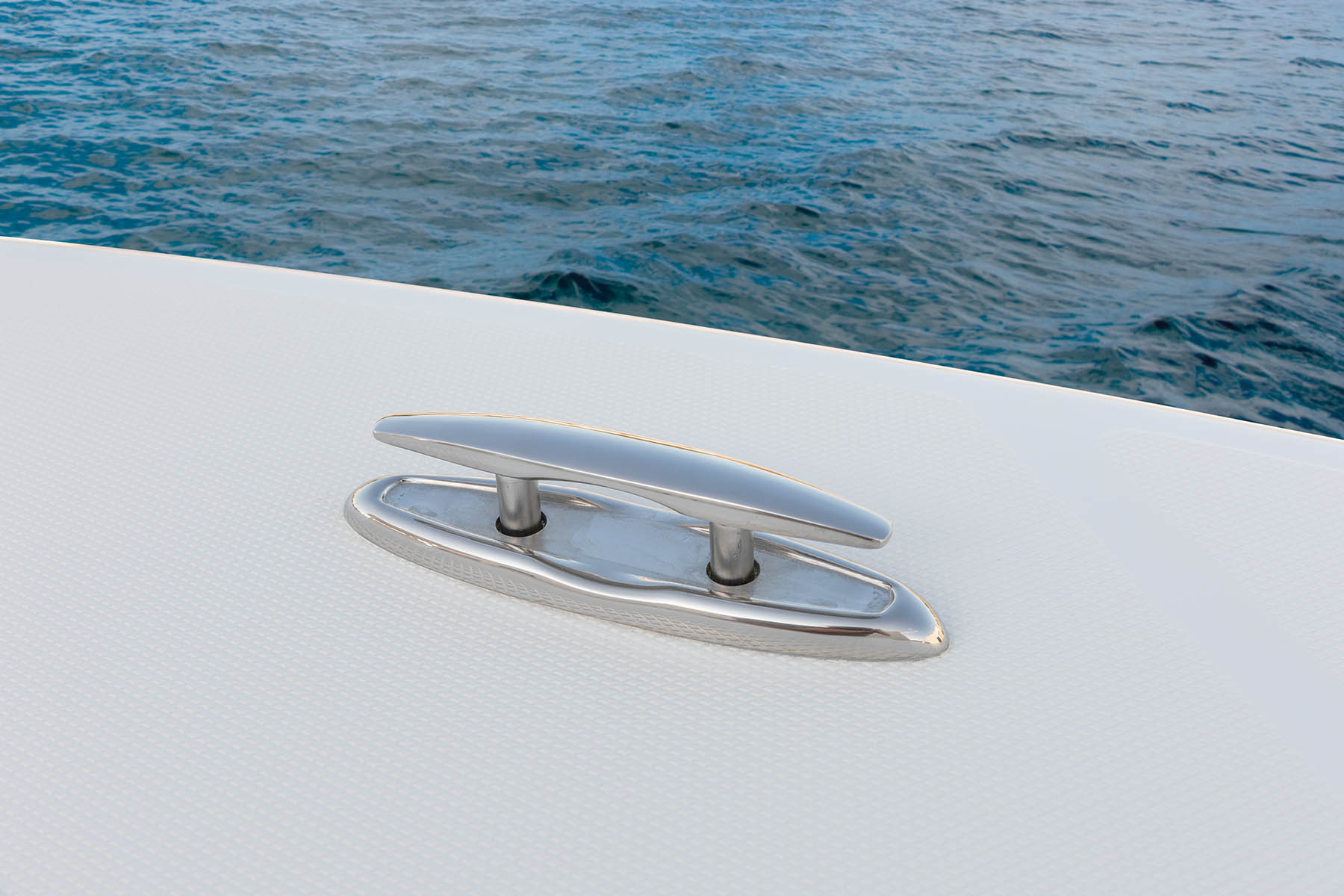

  • Four 8" (20.32 cm) stainless steel, anti-rattle pop-up cleats
  • Four 8" (20.32 cm) stainless steel, vertical cleats below deck w/access via hawse pipes
  • 4 bow deck drink holders
Exterior
  • Legendary dry-riding MAKO® hull
  • Aggressive deep V hull design
  • Set-back transom delivers undisturbed water to the props
  • Performance lifting strakes
  • Recessed electric, Auto Glide trim tabs
  • Factory-matched stainless steel propellers
Construction & Exterior

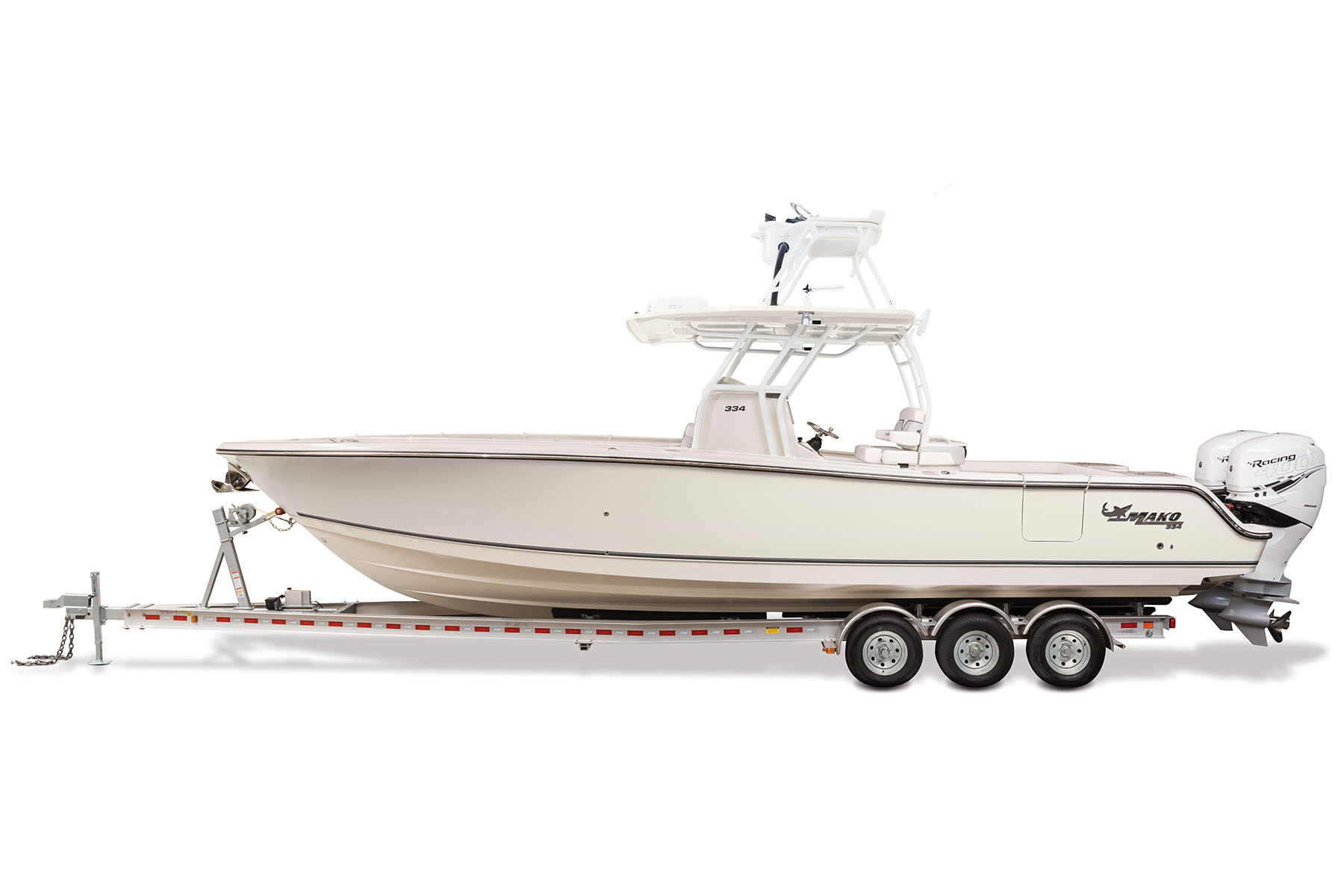

  • Color: MAKO® Bone White gelcoat
  • Ring deck design for more usable interior space
  • 100% composite construction
  • Coosa® Bluewater 100% composite transom core
  • Heavy-duty, 5" (12.7 cm) fiberglass-encapsulated transom w/3" (7.62 cm) fiberglass-impregnated, high-density composite core
  • Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
  • 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish
  • Closed-cell foam-injected stringer grid for USCG-approved flotation
  • Vinyl ester barrier coat
  • Heavy-duty rub rail w/stainless steel insert
  • Premium marine-grade stainless steel hardware & fasteners for corrosion resistance
  • Heavy duty extra thick, closed-molded hatch covers w/finished undersides & integrated gaskets
  • Aluminum backing plates for cleats & chocks
  • 3-step, stowable dive ladder
  • Recessed, pull-out, telescoping boarding ladder
Electrical, Mechanical & Plumbing System
  • Aluminum main fuel tank w/4 baffles
  • Electroplated Sea Chest keeps 3 pumps submerged for cooler running & longer life
  • Forward 1,000 GPH (3,785.41 LPH) bilge pump w/auto float
  • 2 automatic 2,000 GPH (7,570.82 LPH) bilge pumps
  • 2,000 GPH (7,570.82 LPH) submerged auxiliary livewell pump
  • Two 2,000 GPH (7,570.82 LPH) submerged livewell pumps
  • Pressurized raw water washdown pump
  • High-speed raw water intake molded into hull bottom
  • Pressurized freshwater pump
  • 38-gal. (143.85 L) CZone™-monitored freshwater tank
  • 1 Gulper macerator pump for bow coffin box
  • 1 Gulper macerator pump per cockpit floor fishbox
  • Forward sump box w/800 GPH (3,028.33 LPH) gray water pump w/auto float
  • 13-gal. (49.21 L) CZone™-monitored waste tank
  • USCG-compliant navigation lights
  • Forward- & aft-facing LED spreader lights in hardtop
  • Blue, diffused LED lighting under gunnels
  • Blue LED underwater lighting at transom
  • 1 cranking battery per outboard
  • Marelon® corrosion-free seacocks on all below-water thru-hull fittings
  • Thru-hull bonding harness for below-water corrosion resistance
  • Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
  • Main distribution panel inside head w/breakers to bypass digital functions
Optional Trailer
  • OPTIONAL tandem-axle EZ Loader® aluminum trailer w/tandem-axle disc brakes available.
  • NMMA® certified.
  • DOT approved.
  • Triple-axle brakes.
  • 15" (38.1 cm) E-Range radial tires w/galvanized wheels.
  • Oil bath hubs.
  • Torsion-axle suspension.
  • Heavy-duty winch w/nylon strap & safety strap.
  • Stainless steel hardware.
  • Galvanized steel components.
  • LED lighting.
  • PVC loading guides.
  • Galvanized fenders.
